НОМТ tower · floor 8 · JTS LLC

Apartment types A–H

Each type was cut from the verified building model and checked against the drawings: floor area against the plan's rooms, every window and door against sheet p10, and the walls against the PDF linework (re-measured 2026-10-11: every printed plan dimension within 10 mm). Renders: a square 4096 × 4096 top-down plan view in the style of the earlier A–H images, but with the true layout; a 4K dollhouse cutaway; eye-level living room and bedroom. The 3D files (FBX, OBJ, GLB, Blend) are in the project folder deliverables/3d/units/. Model check and walkthrough → · Measurement audit →

Type A

74.31 m² · 3 rooms · windows west All checks pass

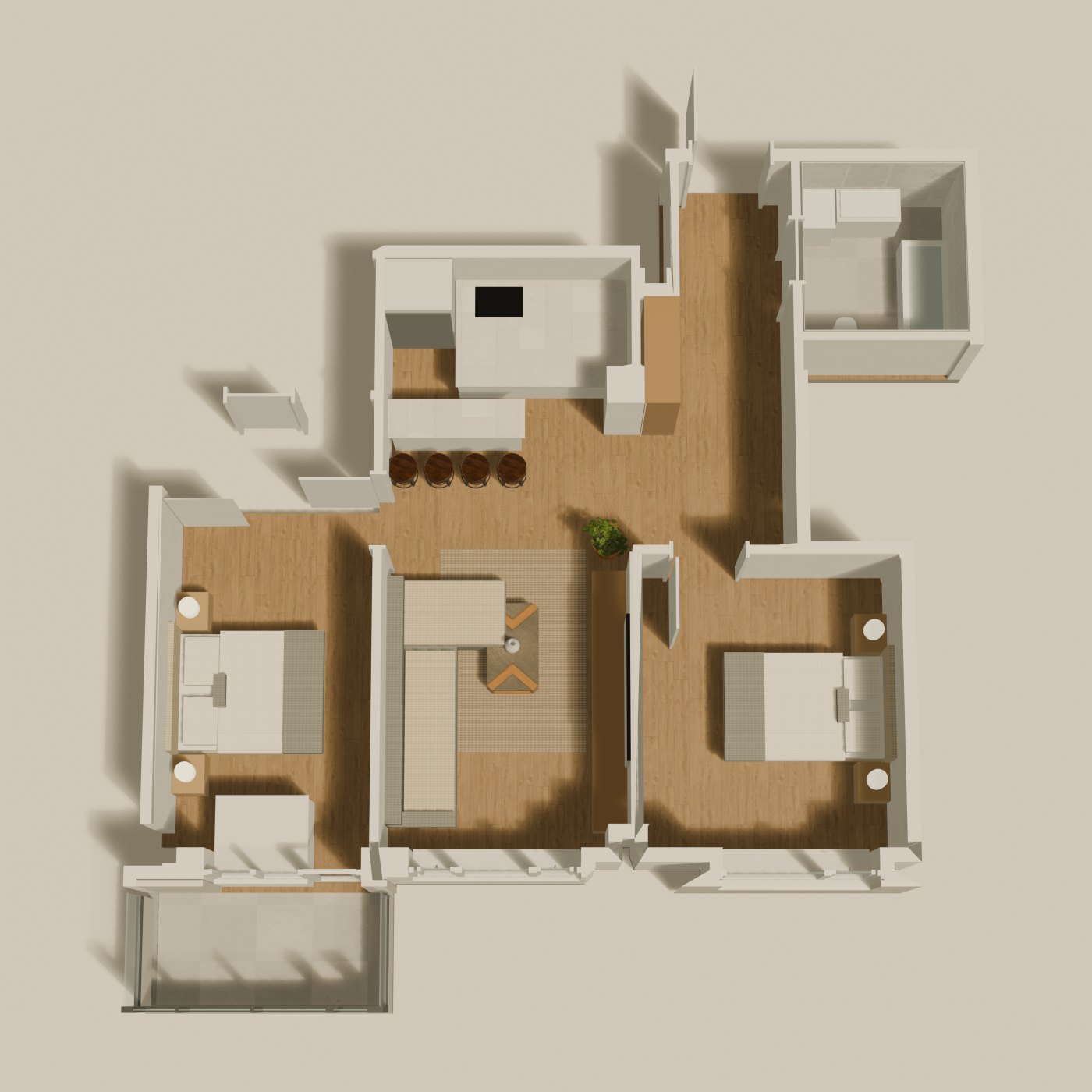

Type A: top-down 3D plan, furnished
Plan view, 1:1 (4096 × 4096), true proportions from the checked model

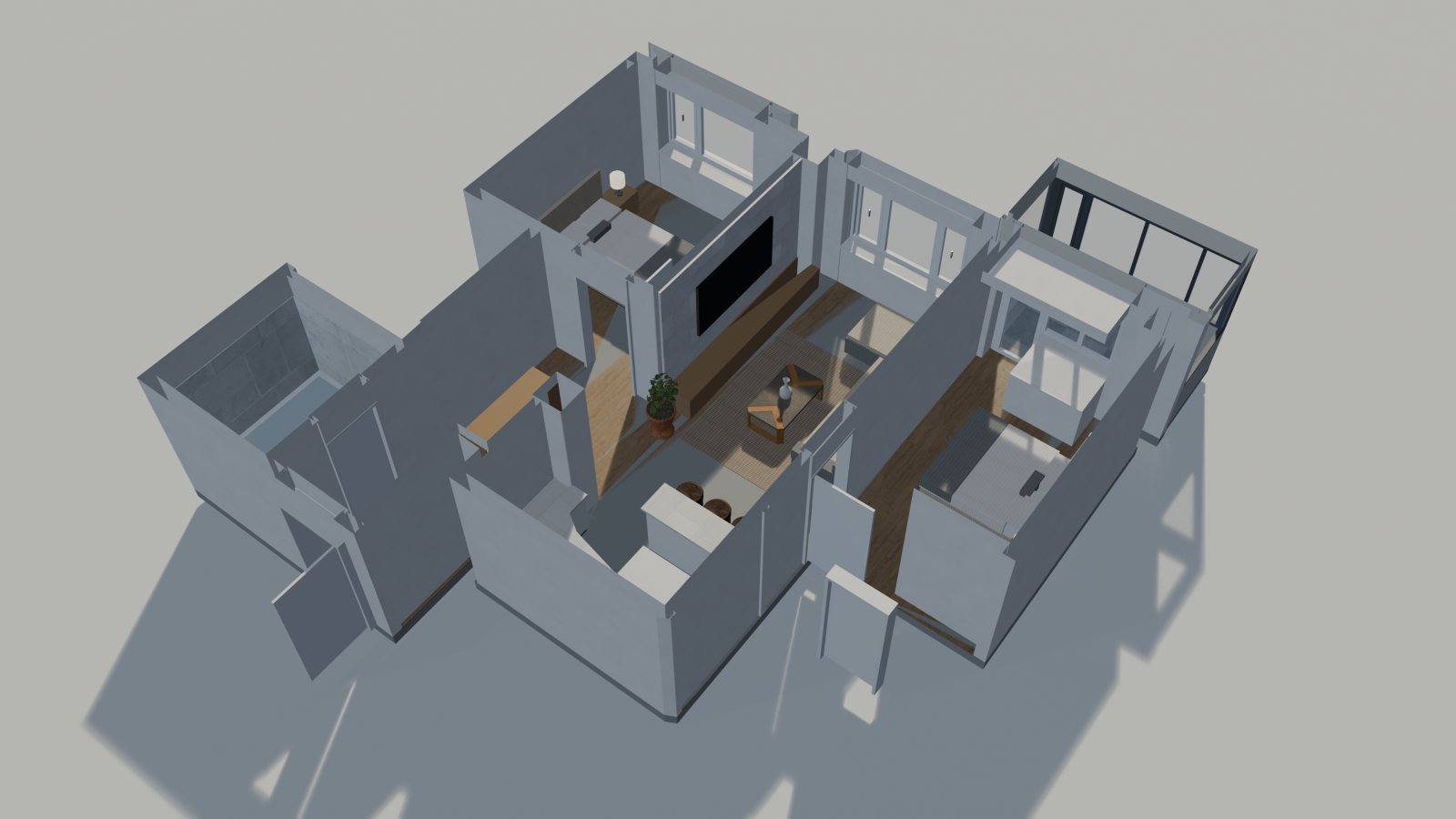

Type A: dollhouse cutaway
Dollhouse cutaway
Type A: living room
Living room
Type A: bedroom
Bedroom

Type B

59.53 m² · 2 rooms · windows east All checks pass

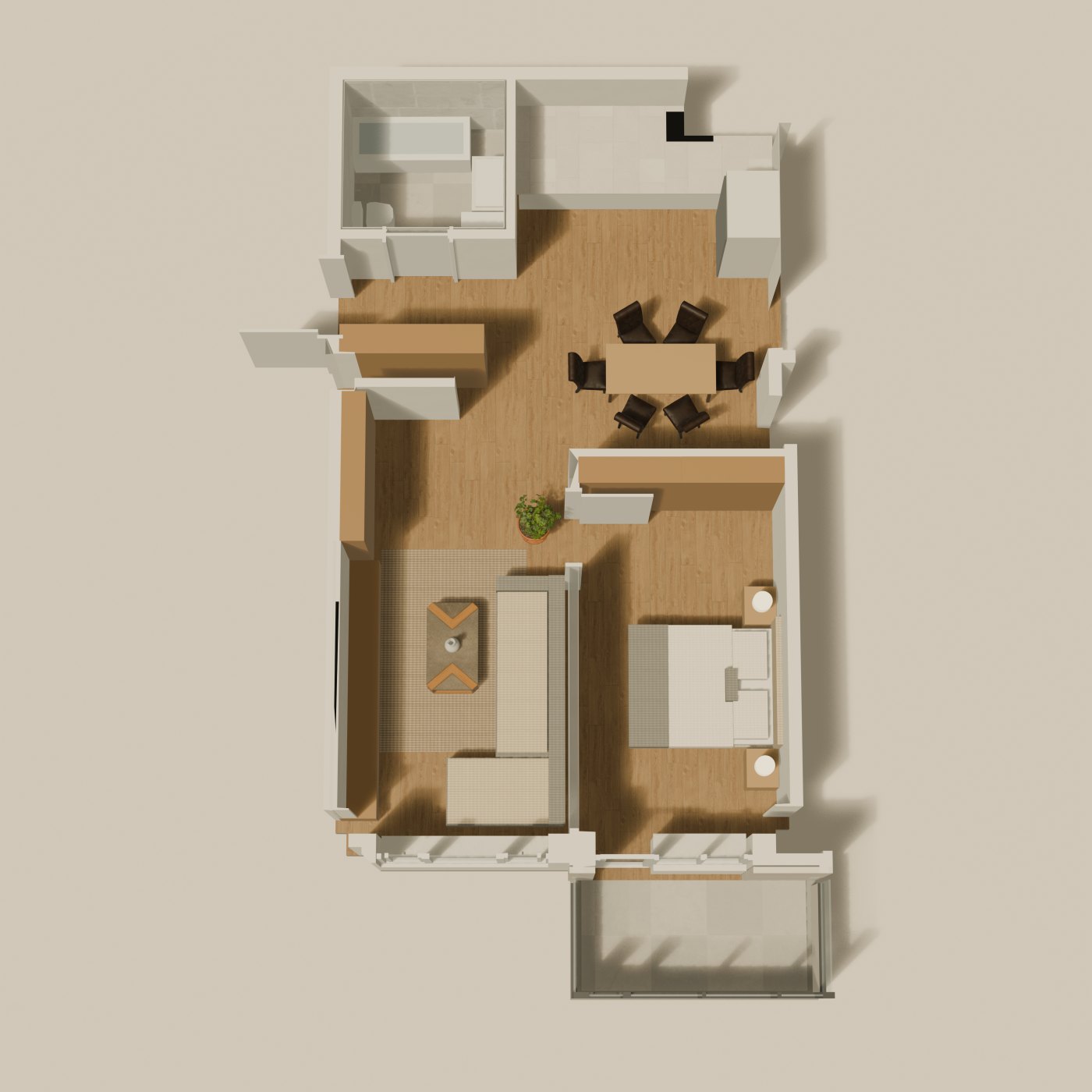

Type B: top-down 3D plan, furnished
Plan view, 1:1 (4096 × 4096), true proportions from the checked model
Type B: dollhouse cutaway
Dollhouse cutaway
Type B: living room
Living room
Type B: bedroom
Bedroom

Type C

79.28 m² · 3 rooms · windows west All checks pass
Type C: photoreal top-down plan, furnished
Plan view, 1:1, photoreal (Higgsfield GPT Image 2.5 on the checked render; registered back onto the render: aspect within 0.3 %, no warping) · model render
Type C: dollhouse cutaway
Dollhouse cutaway
Type C: living room
Living room
Type C: bedroom
Bedroom

Type D

68.71 m² · 2 rooms · windows east All checks pass

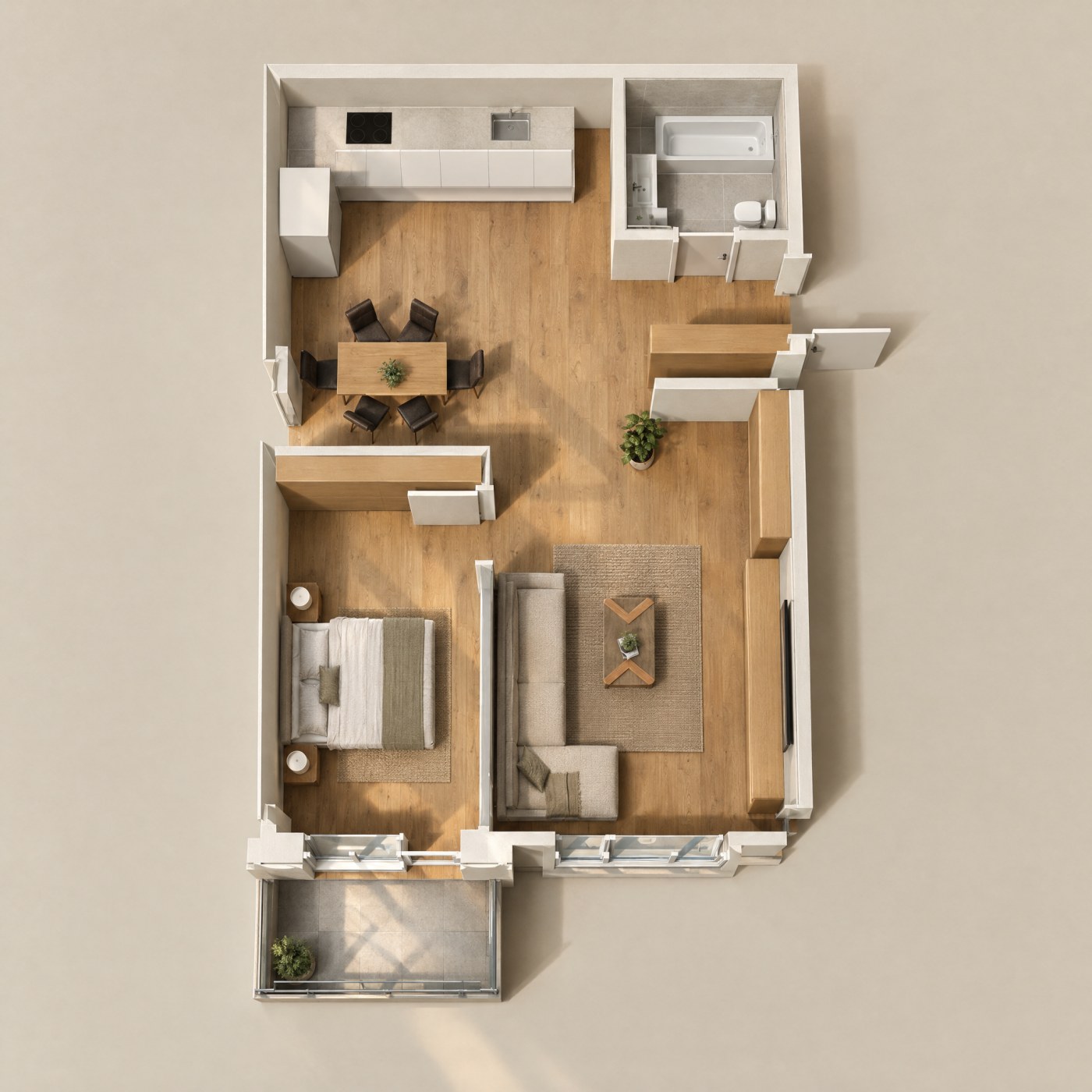

Type D: photoreal top-down plan, furnished
Plan view, 1:1, photoreal (Higgsfield GPT Image 2.5 on the checked render; registered back onto the render: aspect within 0.3 %, no warping) · model render
Type D: dollhouse cutaway
Dollhouse cutaway
Type D: living room
Living room
Type D: bedroom
Bedroom

Type E

74.55 m² · 3 rooms · windows west All checks pass

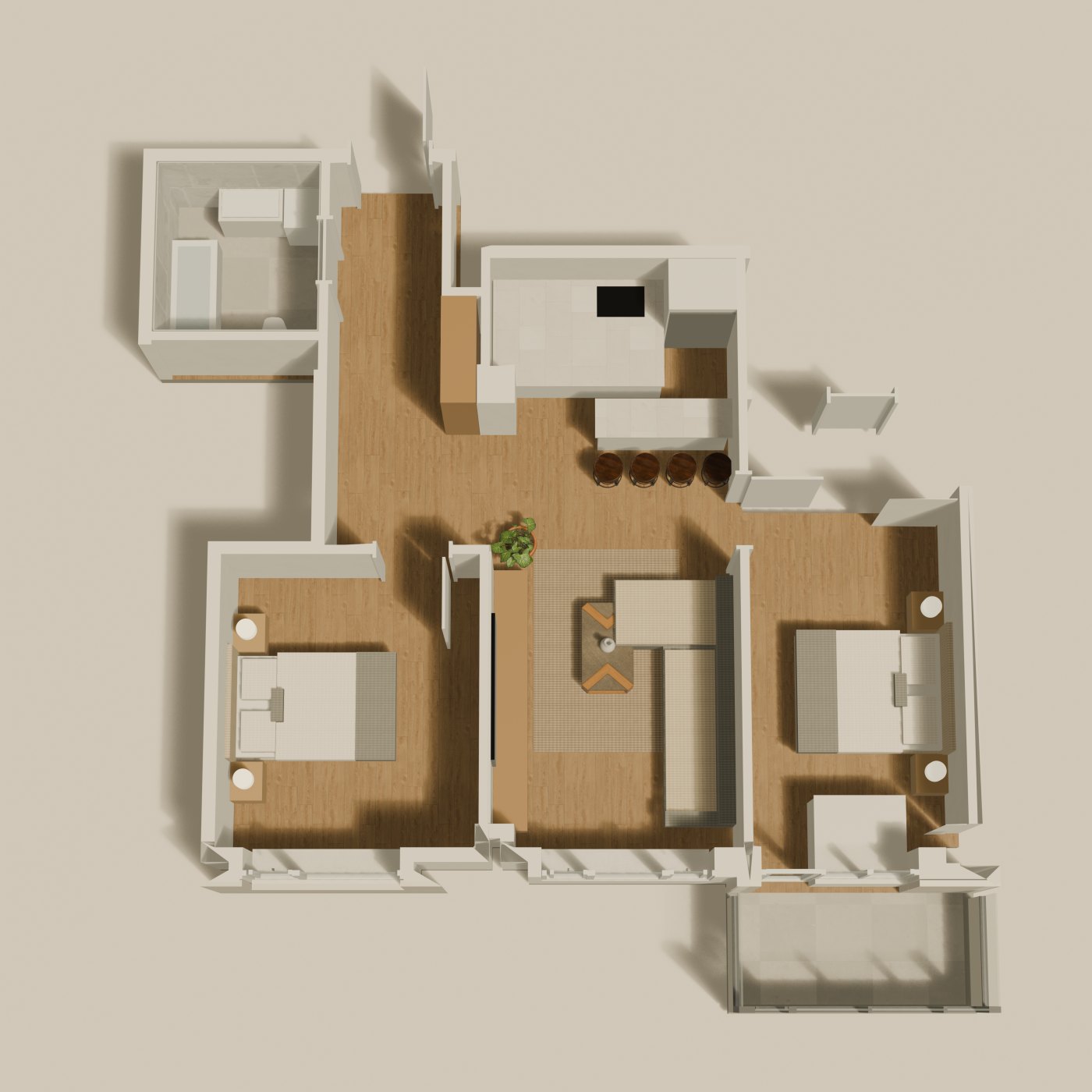

Type E: top-down 3D plan, furnished
Plan view, 1:1 (4096 × 4096), true proportions from the checked model

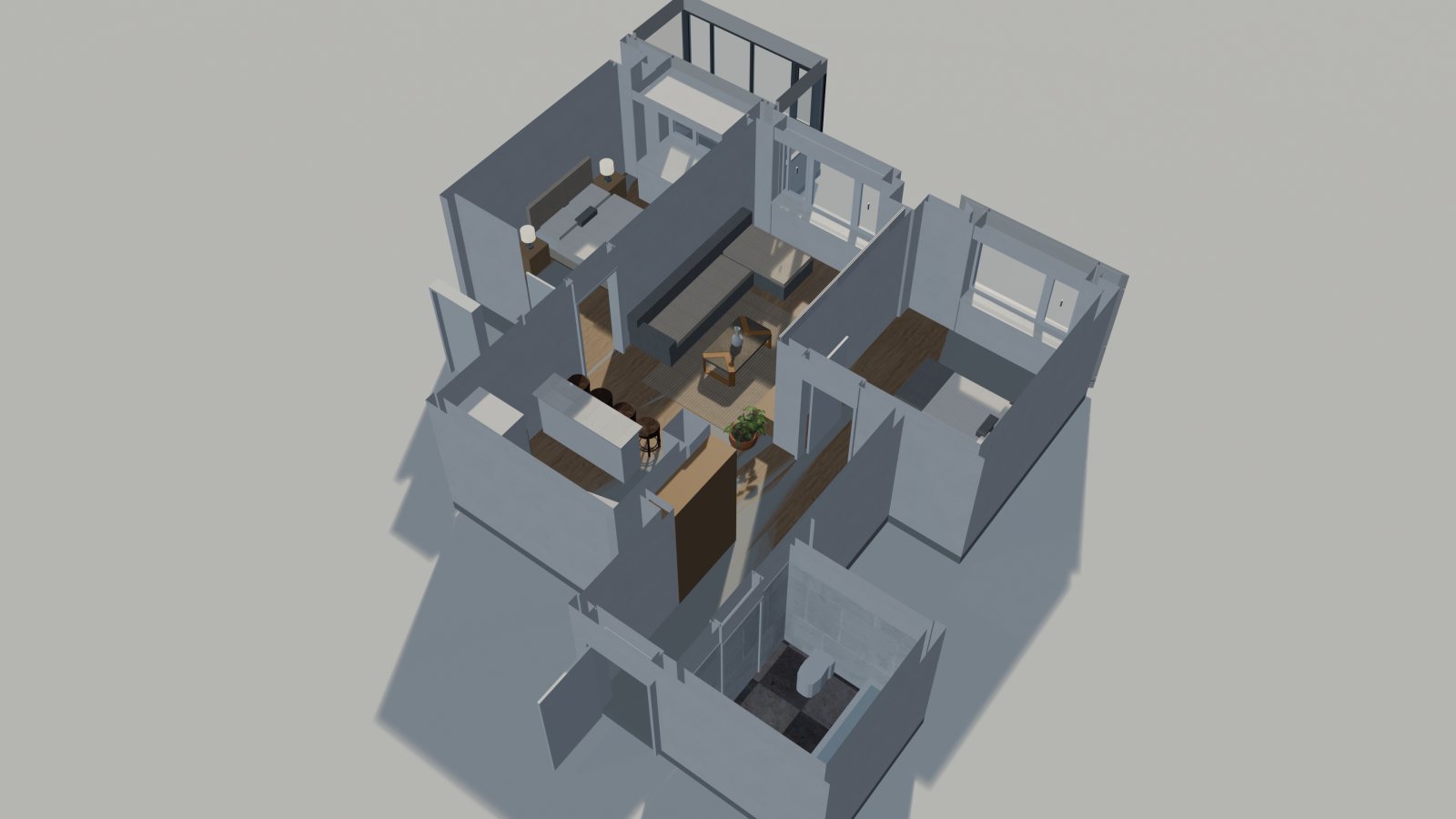

Type E: dollhouse cutaway
Dollhouse cutaway
Type E: living room
Living room
Type E: bedroom
Bedroom

Type F

60.1 m² · 2 rooms · windows east All checks pass
Type F: photoreal top-down plan, furnished
Plan view, 1:1, photoreal (Higgsfield GPT Image 2.5 on the checked render; registered back onto the render: aspect within 0.3 %, no warping) · model render
Type F: dollhouse cutaway
Dollhouse cutaway
Type F: living room
Living room
Type F: bedroom
Bedroom

Type G

79.29 m² · 3 rooms · windows west All checks pass
Type G: photoreal top-down plan, furnished
Plan view, 1:1, photoreal (Higgsfield GPT Image 2.5 on the checked render; registered back onto the render: aspect within 0.3 %, no warping) · model render
Type G: dollhouse cutaway
Dollhouse cutaway
Type G: living room
Living room
Type G: bedroom
Bedroom

Type H

68.7 m² · 2 rooms · windows east All checks pass
Type H: top-down 3D plan, furnished
Plan view, 1:1 (4096 × 4096), true proportions from the checked model
Type H: dollhouse cutaway
Dollhouse cutaway
Type H: living room
Living room
Type H: bedroom
Bedroom
